Hydac filter

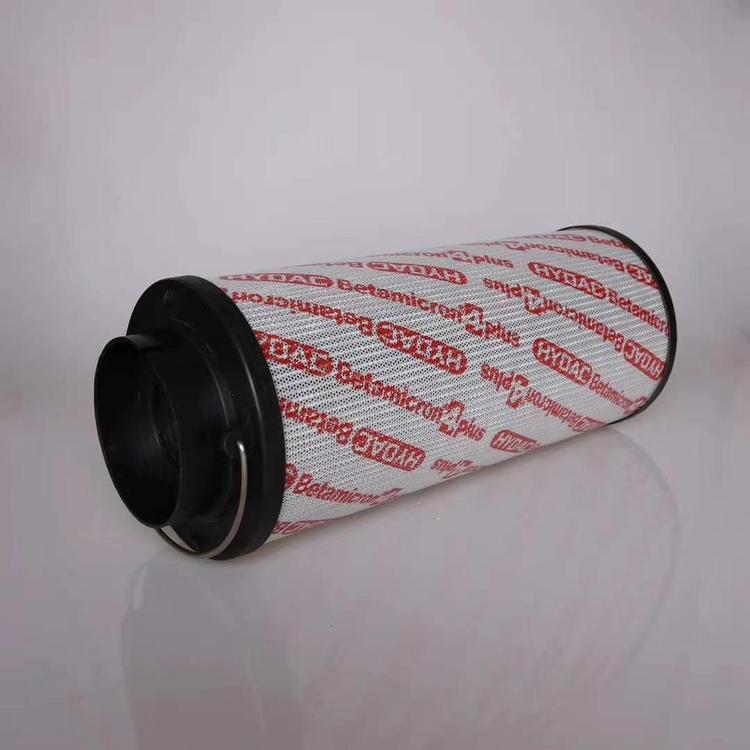

  • HYDAC0110R003BH3HC hydraulic filter element
  • HYDAC0110R003BH3HC hydraulic filter element
  • HYDAC0110R003BH3HC hydraulic filter element
HYDAC0110R003BH3HC hydraulic filter elementHYDAC0110R003BH3HC hydraulic filter elementHYDAC0110R003BH3HC hydraulic filter element

HYDAC0110R003BH3HC hydraulic filter element

  • Working temperature: -30℃~110℃
  • Working pressure: (MAX) 21Mpa
  • Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
  • Filtration accuracy: 1~100μm
  • Description: Hedeke hydraulic filter element,Glass fiber filter element,Engineering machinery Hedeke filter element,Forklift special Hedeke filter element,Hydraulic power system filter element,High,altitude workin

Whatsapp Me

●HYDAC hydraulic filter technical parameters

 Filter material: glass fiber, stainless steel mesh, wood pulp filter paper

Filtration accuracy: 1~100μm
Working pressure: (MAX) 21Mpa
Working temperature: -30℃~110℃
Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

●Related model

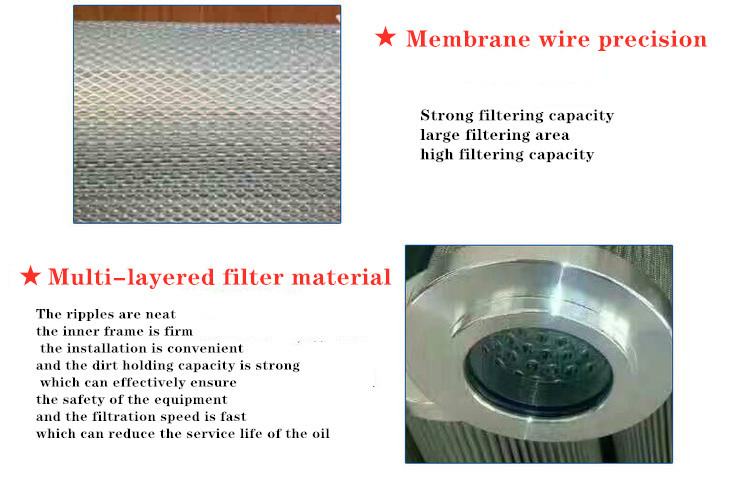

●Performance characteristics
1. The filter element is made of glass fiber/stainless steel mesh imported from the United States, which has the advantages of convenient sewage discharge, large circulation area, small pressure loss, simple structure, small volume, light weight, uniform filter material, etc.
2. The compatibility of the filter material is suitable for the filtration of general hydraulic oil.
3. The filter element is supported by the solid filter material on both sides and the stable filter material.

●Product introduction:
   It is usually installed in the inlet end of the hydraulic system to filter out metal particles, polluting impurities, etc. in the fluid medium, which can protect the normal operation of the equipment. When the fluid enters the filter, its impurities are blocked, and the clean filtrate is The filter outlet is discharged. When cleaning is needed, just take the filter element out of the filter, treat it with industrial liquid, and install it.

●Product use:

   In the hydraulic system, it is used to filter solid particles and colloidal substances in the working medium, and effectively control the pollution degree of the working medium. The filter element is right

   This series of filter elements are made of imported filter materials as an alternative to the domestically produced filter elements for imported equipment.

 ●Product application:

 1. Metallurgy: The filter element is used for the filtration of the hydraulic system of the rolling mill and the continuous casting machine and the filtration of various lubricating equipment.
 2. Petrochemical: The filter element can be used for the separation and recovery of products in the process of oil refining and chemical production, liquid purification, magnetic tape, CD-ROM and photographic film are in production
Purification in the manufacturing process, oil field injection well water and dust removal particle filtration.
 3. It is also used in related hydraulic systems in textile, thermal power and nuclear power industries.

● Full range of HYDAC filter products

 D series
0030D series 0060D series 0110D series 0140D series 0160D series
0240D series 0280D series 0330D series 0500D series 0660D series
0990D series 1320D series

 R series

0030R series 0060R series 0110R series 0160R series 0240R series
0330R series 0500R series 0660R series 0850R series 0950R series
1300R series 1700R series 2600R series

 DN series:
0040DN series 0063DN series 0100DN series 0160DN series
0250DN series 0400DN series 0630DN series 1000DN series

 RN series

0040RN series 0063RN series 0100RN series 0160RN series
0250RN series 0400RN series 0630RN series
