Replacement Pall Hydraulic Filter Element

  • HC4754 replacement pall hydraulic return filter element
  • HC4754 replacement pall hydraulic return filter element
  • HC4754 replacement pall hydraulic return filter element
HC4754 replacement pall hydraulic return filter elementHC4754 replacement pall hydraulic return filter elementHC4754 replacement pall hydraulic return filter element

HC4754 replacement pall hydraulic return filter element

  • HC4704FCS13H: Filter accuracy 12μm, filter element length 13in
  • HC4704FCS16H: filter accuracy 12μm, filter element length 16in
  • HC4704FCT8H: filter accuracy 22μm, filter element length 8in
  • HC4754FCP16Z: filter accuracy 5μm, filter element length 16in
  • Description: PAL Pall filter element HC4704FKN8H This series of high pressure oil filter element is installed in the oil circuit of the hydraulic system to remove the worn metal powder and other mechanical impurit
  • INQUIRY   EMAIL

Whatsapp Me

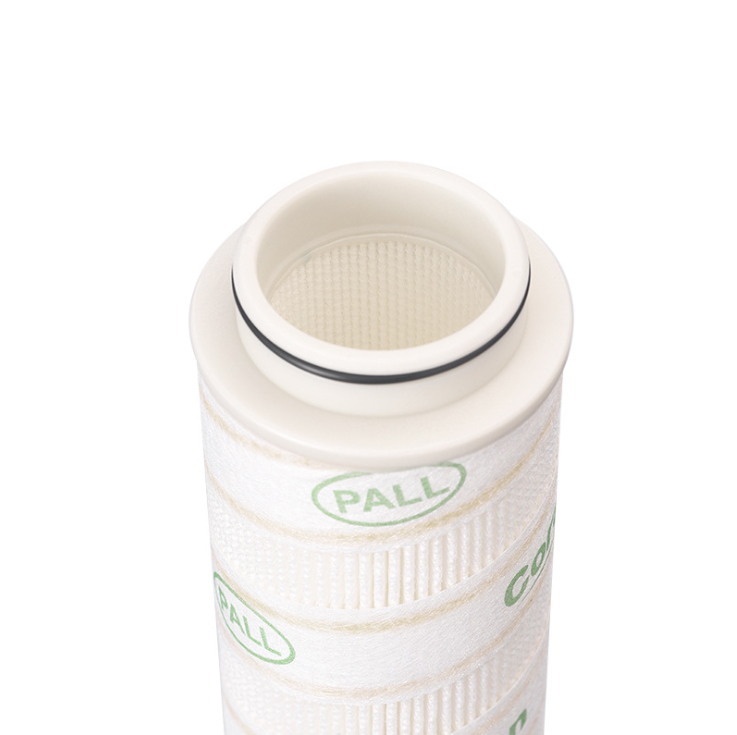

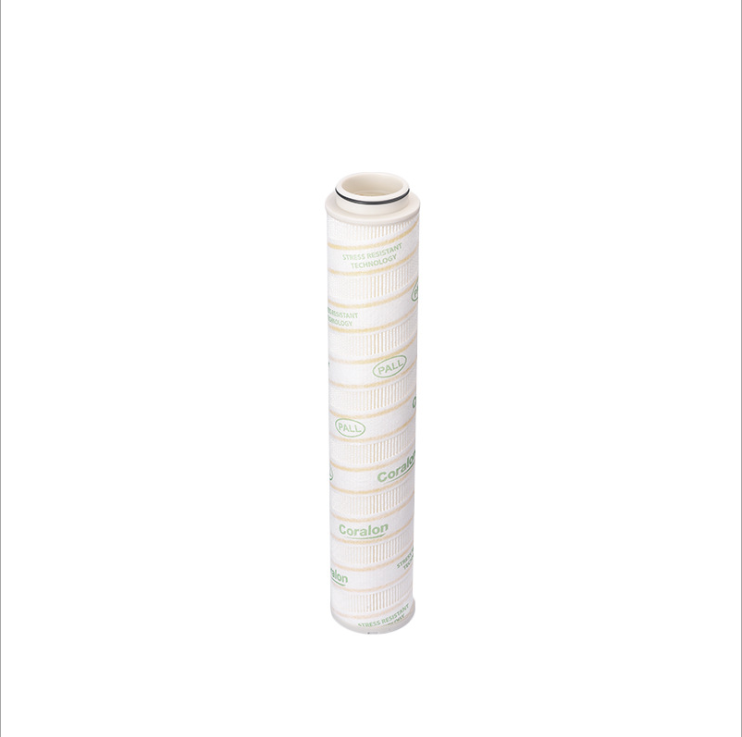

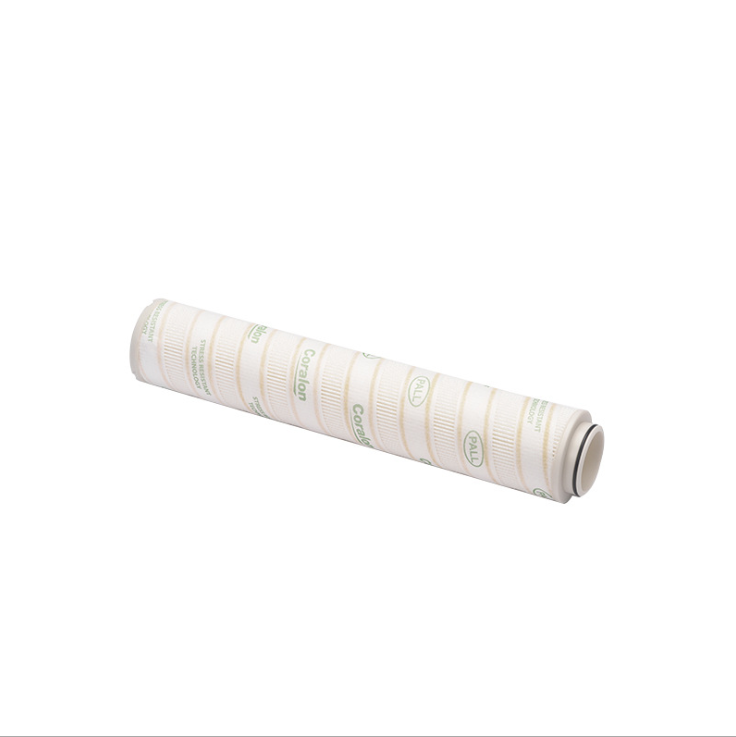

Pall/Pall Lubricating Oil Filter Element HC4704/HC4754 FAN-FMS Series

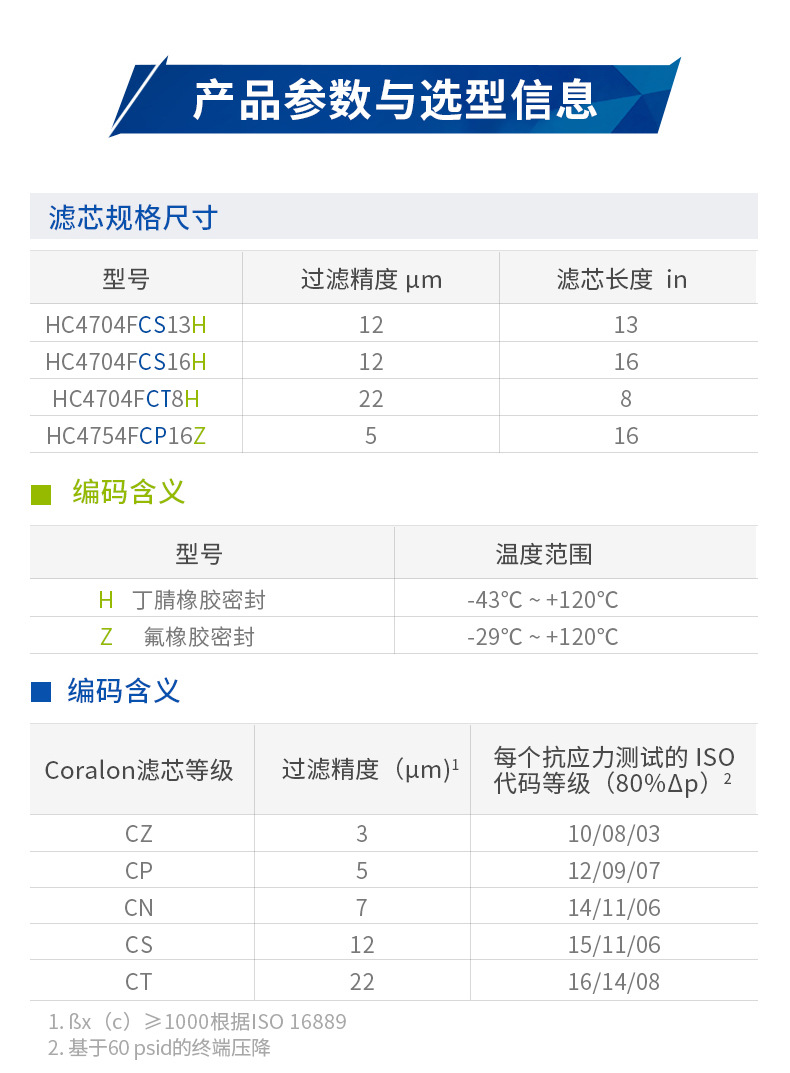

HC4704FCS13H: Filter accuracy 12μm, filter element length 13in

HC4704FCS16H: filter accuracy 12μm, filter element length 16in
HC4704FCT8H: filter accuracy 22μm, filter element length 8in
HC4754FCP16Z: filter accuracy 5μm, filter element length 16in


PALl Pall filter element HC4704FKN8H product description:

PAL Pall filter element HC4704FKN8H This series of high pressure oil filter element is installed in the oil circuit of the hydraulic system to remove the worn metal powder and other mechanical impurities in the hydraulic system to keep the oil circuit clean. The pall filter element can extend the life of the hydraulic system; low pressure The series filter element is also equipped with a bypass valve. When the filter element is not replaced in time, the bypass valve can automatically open to ensure the normal operation of the system. At present, the PAL L series products are substitutes for similar products in the United States, Germany, Britain, Italy and other countries.

PALl Pall filter element HC4704FKN8H model recommendation:

HC8304FKP39H HC8400FKN16H HC8304FKZ39H HC8304FKS16H HC8304FKN39H

Jiyuan Zhongyuan Filter Industry Co., Ltd. specializes in the production of filters, filter elements, filtration equipment, replacement of imported filter elements, national standard filter elements, filters and oil filter carts, and sincerely hope to cooperate with you!


Technical Parameters
1) Filter element withstand pressure difference: 21MPa
2) Working temperature: -10~+100℃
3) Filtration accuracy: 5~20μm
4.) Working medium: not general hydraulic oil.

Features
1. The filter element is made of imported glass fiber, which has the advantages of convenient sewage discharge, large circulation area, small pressure loss, simple structure, small volume, light weight, uniform filter material, etc.
2. The compatibility of the filter material is suitable for the filtration of general hydraulic oil.
3. The filter element is supported by the solid filter material on both sides and the filter material with strong stability. It conforms to the verification of the flow fatigue characteristics of the ISO3724/76 hydraulic filter element.
Application field
In the hydraulic system, it is used to filter solid particles and colloidal substances in the working medium, and effectively control the pollution degree of the working medium. This series of filter elements is an alternative to the domestically produced filter elements for imported equipment, and can replace the original imported PALl filter elements.

1) Metallurgy is used in the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.

2) Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, liquid purification, purification of magnetic tapes, optical discs and photographic films in manufacturing, and use of oilfield injection well water and natural gas for particle removal and filtration.
