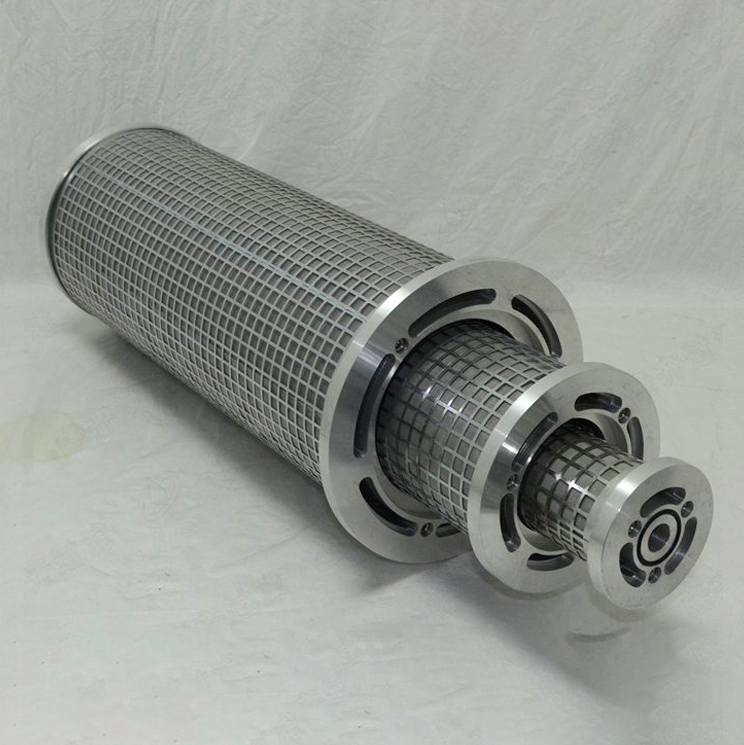

Three Parallel Stainless Steel Filter Cylinders LY-15/25 for Steam Turbine

The LY-15/25 parallel oil filter element for power plant steam turbine oil is composed of several filters connected in parallel, ranging from small to large. It features a compact size, large filtration area, simple disassembly and assembly, and easy cleaning. It is used for oil suction filtration to remove solid particles and colloidal substances from the working medium, effectively controlling the contamination level of the medium. The filter element is installed inside the oil tank and must be positioned below the oil level. The filtration material is made of stainless steel woven mesh or copper mesh, which can be cleaned and reused multiple times.

Features of the LY-15/25 Parallel Filter Cartridge for Turbine Oil in Power Plants

1) The filter paper with a multi-layer composite structure offers high filtration precision

2) High contaminant capacity and long service life;

3) High flow density reduces the size of the fine filter;

4) The carefully designed and specially treated glass fiber layer ensures excellent coalescence performance;

5) The structure and materials comply with the requirements of API-1581 and GJB610-88 standards;

6) A wide range of specifications and varieties are available to meet the needs of various precision filters.

Application field

1. Metallurgy: Used for filtration in the hydraulic systems of steel rolling mills and continuous casting machines, as well as in various lubrication equipment.

2. Petrochemical: Separation and recovery of products and intermediates in oil refining and chemical production processes, as well as particle filtration for injection water in oil fields and natural gas.

3. Textile: Purification and uniform filtration of polyester melt during the filament drawing process, protection filtration of air compressors, and oil and water removal from compressed gases.

4. Electronics and Pharmaceuticals: Pretreatment filtration of reverse osmosis water and deionized water, as well as pretreatment filtration of cleaning solutions and glucose.

5. Thermal and Nuclear Power: Oil purification for the lubrication systems, speed control systems, and bypass control systems of steam turbines and boilers, as well as purification for feedwater pumps, fans, and dust removal systems.

6. Machining Equipment: Lubrication systems for papermaking machinery, mining machinery, injection molding machines, and large precision machinery, as well as purification of compressed air, dust recovery and filtration for tobacco processing equipment and spray painting equipment.

7. Locomotive and Generator: Lubricant and Engine Oil Filtration

8. Automobile engines and construction machinery
