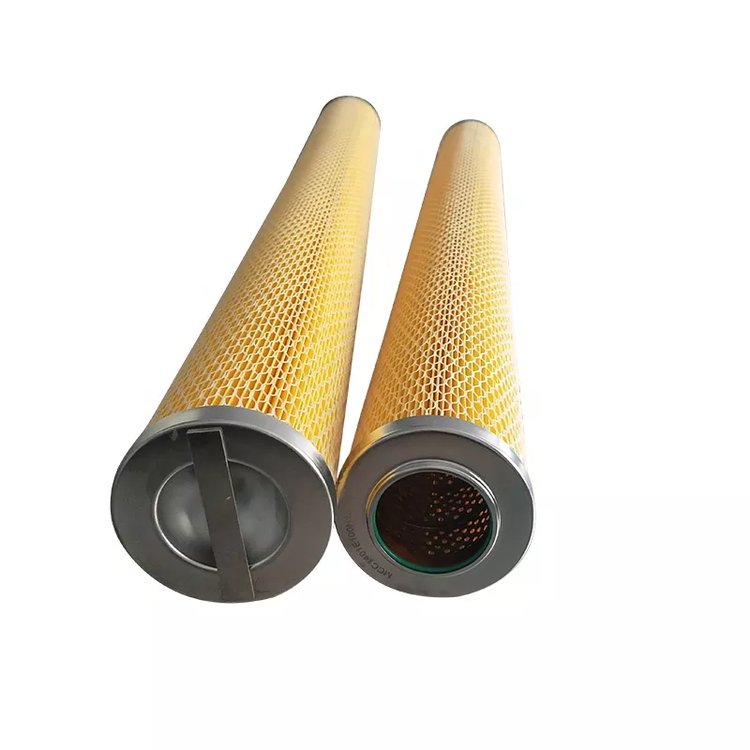

Replacement Pall MCC1401E100H13 Nature gas filter element

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 15 PSID

Dimensional Specifications
Outer Diameter, Top: 3.75 IN (95.25 MM)

Outer Diameter, Bottom: 3.75 IN (95.25 MM)

Inner Diameter, Top: 2.19 IN (55.63 MM)

Inner Diameter, Bottom:

Length: 38.63 IN (981.20 MM)

Thread: NONE

Physical Specifications
Handle: YES

Seal Material: BUNA-N

Type of Adhesive: URETHANE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END
